So I wrote a lexer in pure C for my Nano C Compiler (nanocc). In this post, I’ll walk you through the design and implementation of the lexer, explaining the key components and decisions made along the way. I’m assuming you have basic knowledge of regular expressions and finite automata.

I’ve only implemented a subset of C (no structs, pointers, arrays, etc.) for now, but the lexer can be easily extended to support more features in the future.

Introduction

Let’s start with what a lexer is. A lexer (or lexical analyzer) takes source code as input and constructs tokens, which is just a struct as shown below:

typedef struct {
    CTokenType type;   // token category produced by the lexer
    const char* start; // source text matched for that token
    int length;        // length matched
} CToken;

here CTokenType refers to an enum which defines all possible token categories, such as keywords, identifiers, literals, operators, etc.

typedef enum {
    INVALID,    INT,    VOID,    RETURN,    IF,    ELSE,    QUESTION,    COLON,
    DO,    WHILE,    FOR,    BREAK,    CONTINUE,    TILDE,    DECREMENT,    NOT,
    MINUS,    PLUS,    STAR,    SLASH,    PERCENT,    AND,    OR,    ASSIGN,
    EQUAL,    NOT_EQUAL,    LESSTHAN,    GREATERTHAN,    LESS_EQUAL,    GREATER_EQUAL,
    IDENTIFIER,    CONSTANT,    LPAREN,    RPAREN,    LBRACE,    RBRACE,    SEMICOLON,
    COMMA,
} CTokenType;

Example:

int factorial(int n) {
    int ret;
    if (n <= 1) {
        ret = 1;
    } else {
        ret = n * factorial(n - 1);
    }
    return ret;
}

The lexer will go throught the above code and produce a sequence of tokens like this:

[INT, "int"]
[IDENTIFIER, "factorial"]
[LPAREN, "("]
[INT, "int"]
[IDENTIFIER, "n"]
[RPAREN, ")"]
[LBRACE, "{"]
[INT, "int"]
[IDENTIFIER, "ret"]
[SEMICOLON, ";"]
[IF, "if"]
[LPAREN, "("]
[IDENTIFIER, "n"]
[LESS_EQUAL, "<="]
[CONSTANT, "1"]
[RPAREN, ")"]
[LBRACE, "{"]
[IDENTIFIER, "ret"]
[ASSIGN, "="]
[CONSTANT, "1"]
[SEMICOLON, ";"]
[RBRACE, "}"]
[ELSE, "else"]
[LBRACE, "{"]
[IDENTIFIER, "ret"]
[ASSIGN, "="]
[IDENTIFIER, "n"]
[STAR, "*"]
[IDENTIFIER, "factorial"]
[LPAREN, "("]
[IDENTIFIER, "n"]
[MINUS, "-"]
[CONSTANT, "1"]
[RPAREN, ")"]
[SEMICOLON, ";"]
[RBRACE, "}"]
[RETURN, "return"]
[IDENTIFIER, "ret"]
[SEMICOLON, ";"]
[RBRACE, "}"]

tl;dr: It breaks down source code and classifies it into different types of tokens, which is further used by the parser.

There are several libraries and tools available for building lexers, such as Flex, ANTLR, and others. However, I chose to implement my own lexer in pure C for a few reasons:

Learning experience
Clang and GCC use hand-written lexers
No bloat, more control and moreover I’m not a fan of abstractions

Initially, I implemented the lexer in C++ using the std::regex library. Since production compilers like Clang and GCC use hand-written lexers, I wanted to write it in pure C without relying on the regex library.

Design and Implementation

Main Lexer Function

So, now that we have some basic understanding of what a lexer is, let’s take a top-down look at it:

CTokenVec clexer(char* s, size_t slen, bool debug) {
    // init all members to 0/NULL
    CTokenVec tokens = {0};
    size_t pos = 0;

    bool matched;
    size_t match_length;
    CTokenType class_type;
    while (pos < slen) {
        if (isspace(s[pos])) {
            pos++;
            continue;
        }

        match_length = 0;
        class_type = INVALID;
        matched = false;
        for (int i = 0; i < NUMFMA; i++) {
            char* remainder = s + pos; // s[pos:]
            int curr_match_length;
            if ((curr_match_length = token_specs[i].second(remainder)) != 0) {
                // what if they are equal? how to decide? keep the first one
                if (curr_match_length > match_length) {
                    class_type = token_specs[i].first;
                    match_length = curr_match_length;
                    matched = true;
                }
            }
        }

        assert(class_type != INVALID);
        if (!matched) {
            LexerRaiseError("Lexical error at position %zu: unexpected character '%c'\n", pos,
                            s[pos]);
        }

        // add to `tokens`
        tokenPushBack(tokens, class_type, s + pos, match_length);

        // remove substr of the string now that it is tokenized
        pos += match_length;
    }
    if (debug) {
        printf("----- Lexical Analysis -----\n");
        tokensPrint(tokens);
        printf("----------------------------\n");
    }
    return tokens;
}

Let’s go line by line (we will review some parts again in detail later):

We return a array of tokens, represented by CTokenVec, which is just a simple dynamic array implementation for CToken structs. We take in the C source code as a string s along with its length slen and a debug boolean
```
CTokenVec clexer(char* s, size_t slen, bool debug) {
```

Intialize CTokenVec tokens to 0 or NULL to store the tokens: CTokenVec tokens = {0};

typedef struct {
    CToken* items;   // array of Tokens
    size_t count;    // number of Tokens in the Vec
    size_t capacity; // actual capacity of Vec
} CTokenVec;

pos keeps track of our current position in the input source code string
```
size_t pos = 0;
```
matched is a flag to indicate if we found a string match for any token type
```
bool matched;
```
match_length stores the length of the matched substring
```
size_t match_length;
```
class_type stores the type of token matched
```
CTokenType class_type;
```
The main loop continues until we reach the end of the input string
```
while (pos < slen) {
```

We skip whitespace characters using isspace()

if (isspace(s[pos])) {
    pos++;
    continue;
}

For each position in the string, we iterate over all token specifications defined in token_specs and try to match the input string against each token type

for (int i = 0; i < NUMFMA; i++) {
    char* remainder = s + pos; // s[pos:]
    int curr_match_length;
    if ((curr_match_length = token_specs[i].second(remainder)) != 0) {

Each entry in token_specs consists of a CTokenType and a function pointer that points to a function which tries to match the input string against a token type and returns the length of the matched substring (or 0 if no match)

typedef struct {
    CTokenType first;
    int (*second)(const char*);
} CTokenSpec;

CTokenSpec token_specs[] = {{INT, int_fsm},     // `int` keyword
                        {VOID, void_fsm},       // `void` keyword
                        {RETURN, return_fsm},   // `return` keyword
                        {IF, if_fsm},           // `if` keyword
                        {ELSE, else_fsm},       // `else` keyword
                        ... // many more entries
                        {IDENTIFIER, identifier_fsm}, // variable/function names
                        {CONSTANT, constant_fsm},     // numeric literals
                        {LPAREN, lparen_fsm},         // `(` symbol
                        {RPAREN, rparen_fsm},         // `)` symbol
                        {LBRACE, lbrace_fsm},         // `{` symbol
                        {RBRACE, rbrace_fsm},         // `}` symbol
                        {SEMICOLON, semicolon_fsm},   // `;` symbol
                        {COMMA, comma_fsm}};          // `,` symbol

If a match is found (i.e curr_match_length is not 0), we update class_type, match_length, and set matched to true
Hold on, there are some gotchas here, let’s take a look at them:
1. Suppose we have two token types: LESS_THAN (<) and LESS_EQUAL (<=). If the input string is <=, both token types will match, but we want to prioritize the longer match (<= in this case). To handle this, we keep track of the longest match found so far and only update class_type and match_length if the current match is longer than the previous one. More examples of this are == vs =, >= vs >, ++ vs +, etc.
2. Now let’s take the string int. It can match both the INT token type and the IDENTIFIER (variable/function name) token type. To resolve this ambiguity, we define the order of token specifications in token_specs such that keywords like INT are checked before more general types like IDENTIFIER. This way, if a keyword is matched, it takes precedence over the identifier match.
```
for (int i = 0; i < NUMFMA; i++) {
        char* remainder = s + pos; // s[pos:]
        int curr_match_length;
        if ((curr_match_length = token_specs[i].second(remainder)) != 0) {
            // FOCUS HERE: After this line
            // GOTCHA 1: Prioritize longer matches
            // GOTCHA 2: Order of token_specs matters; for example keywords vs identifiers
            if (curr_match_length > match_length) {
                class_type = token_specs[i].first;
                match_length = curr_match_length;
                matched = true;
            }
        }
    }
```
After checking all token types, if no match is found, we raise a lexical error
If a match is found, we create a new CToken with the matched type, starting position, and length, and add it to the tokens array using tokenPushBack function
```
tokenPushBack(tokens, class_type, s + pos, match_length);
```

If no token type matches the current position in the input string, we raise a lexical error indicating an unexpected character

if (!matched) {
    LexerRaiseError("Lexical error at position %zu: unexpected character '%c'\n", pos,
                    s[pos]);
}

Finally, we advance the pos by the length of the matched substring and continue the loop
```
pos += match_length;
```

Okay, so let’s take a look at the CToken struct again:

typedef struct {
    CTokenType type;   // token category produced by the lexer
    const char* start; // source text matched for that token
    int length;        // length matched
} CToken;

Here instead of allocating new memory for the matched substring, we simply store a pointer to the starting position of the match in the original input string along with its length.

This approach avoids unnecessary string allocations and copies, making the lexer more efficient. (although in the C++ version I did allocate new strings for each token, that’s something which will be improved in future. But the C version is already optimized in this regard)

Regex Engine Implementation

Each token type has its own Finite Automaton implemented as a function that takes the pointer to the input string and returns the length of the matched substring (or 0 if no match).

Before going into the details of each FSM implementation, let’s take a look at their std::regex counterparts from my initial C++ implementation:

std::pair<TokenType, std::regex> token_specs[] = {
    // "keywords" should get more priority than "identifiers", so lex them first
    {TokenType::INT, std::regex("int\\b")},
    {TokenType::VOID, std::regex("void\\b")},
    ... // more keywords

    // more token types with their regex patterns

    {TokenType::IDENTIFIER, std::regex("[a-zA-Z_]\\w*\\b")}, // variable/function names
    {TokenType::CONSTANT, std::regex("[0-9]+\\b")}, // numeric literals
    {TokenType::LPAREN, std::regex("(")},
    {TokenType::RPAREN, std::regex(")")},
    {TokenType::LBRACE, std::regex("{")},
    {TokenType::RBRACE, std::regex("}")},
    {TokenType::SEMICOLON, std::regex(";")},

    // function args separator
    {TokenType::COMMA, std::regex(",")},
};

Here \\b denotes a word boundary, meaning something which is not a word character (alphanumeric or underscore) follows the matched keyword. This ensures that we don’t match keywords that are part of longer identifiers (e.g., int68 should not match the int keyword).

/* helper function */
/// @brief everything except `0-9`, `a-z`, `A-Z`, `_` => `\\b` is true
/// @param c
/// @return if `c` is `std::regex("\\b")` return `true` else `false`;
bool _iswordbreaker(char c) {
    return !isalnum(c) && c != '_';
}

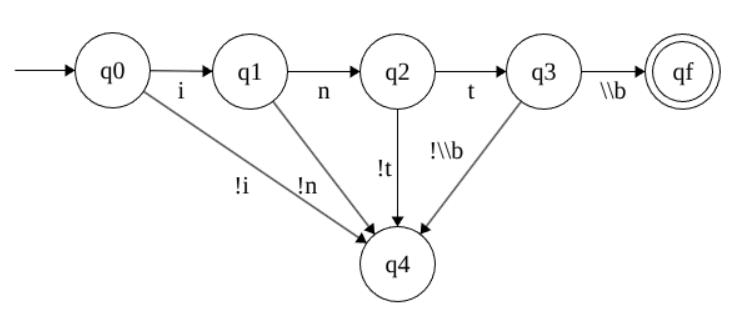

Now, let’s implement the Finite State Machine (FSM) for int in C: alt text

/// @brief int\\b
int int_fsm(const char* s) {
    if (s[0] != 'i' || s[1] != 'n' || s[2] != 't' || !_iswordbreaker(s[3])) {
        return 0;
    }
    return 3;
}

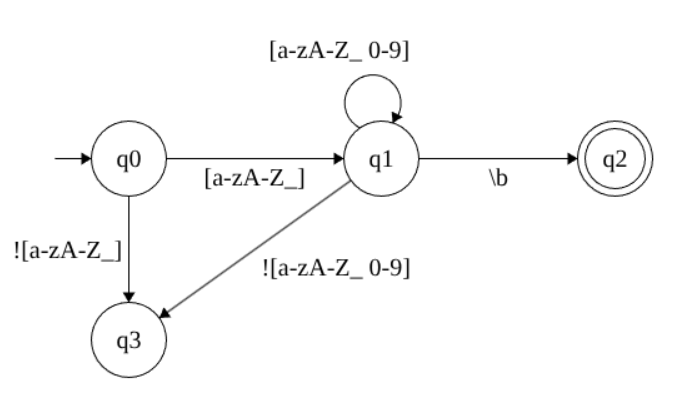

Now let’s implement the FSM for identifiers and constants, (other’s are easy and similar like int_fsm): alt text

/// @brief `std::regex("[a-zA-Z_]\\w*\\b")`
/// @param s
/// @return match length if it matches else 0
int identifier_fsm(const char* s) {
    int len = 0;
    if (!isalpha(s[0]) && s[0] != '_') {
        return 0;
    }
    len++;

    int i = 1;
    while (!_iswordbreaker(s[i])) {
        if (!isalnum(s[i]) && s[i] != '_') {
            return 0;
        }
        i++, len++;
    }
    return len;
}

alt text

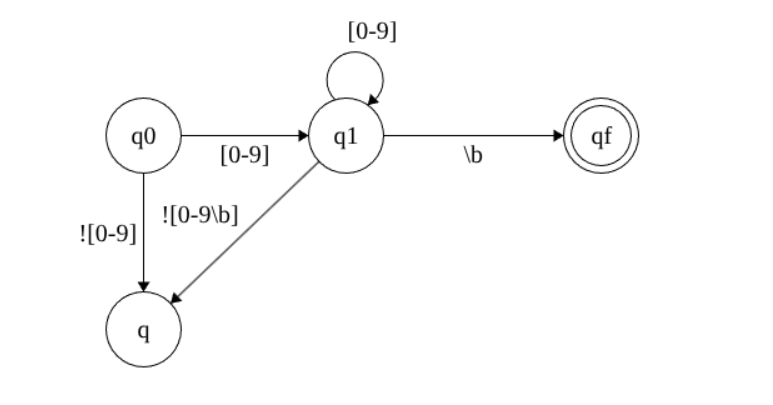

/// @brief `std::regex("[0-9]+\\b")` => one or more digits
/// @param s
/// @return match length if it matches else 0
int constant_fsm(const char* s) {
    int len = 0;
    if (!isdigit(s[0])) {
        return 0;
    }
    len++;

    int i = 1;
    while (!_iswordbreaker(s[i])) {
        if (!isdigit(s[i])) {
            return 0;
        }
        i++, len++;
    }
    return len;
}

C++ Frontend

To make the C lexer usable in my C++ nanocc compiler, I created a simple C++ wrapper function around the clexer function:

namespace nanocc {
std::deque<Token> lexer(std::string& s, bool debug) {
    CTokenVec c_tokens = clexer(const_cast<char*>(s.c_str()), s.size(), debug);

    std::deque<Token> tokens;
    tokens.resize(c_tokens.count);

    for (size_t i = 0; i < c_tokens.count; i++) {
        Token token;
        token.type = static_cast<TokenType>(c_tokens.items[i].type);
        // TODO(VachanVY): can we avoid this allocation? use string_view?
        token.lexeme = std::string(c_tokens.items[i].start, c_tokens.items[i].length);
        tokens[i] = std::move(token);
    }
    freeCTokens(c_tokens);
    return tokens;
}
} // namespace nanocc

Here, we convert the C-style tokens returned by clexer into C++ Token objects used in nanocc. Note that we allocate new strings for each token’s lexeme here, which will be optimized in the future.
